SPEC OF DROP-IN ISOLATOR |
产品介绍: |

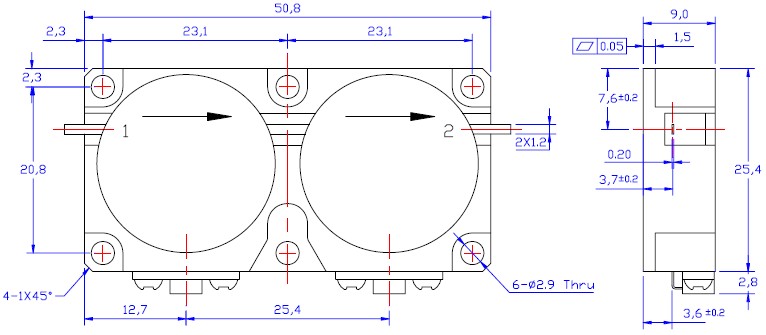

Part Number: DI-700-010A Features: Broadband Transmission High Isolation Specification: Frequency 728-768 MHz Temperature range -40℃~+85℃ Return loss(P1、P2) ≧20.0 dB Isolation (P2→P1)` ≧40.0 dB Insertion loss(P1→P2)) ≦0.65 dB Power Handling(F/R) 100WCW 500W PK/20W CW Direction Clockwise Input / Output Impedance 50 Ohm Storage temperature range -40℃~+110℃ Outline Drawing: Material --Body: Steel,Nickel plated --Tab: BeCu,Silver plated Tab at three locations --Lead-Free,No Nd Material,BeO Free GENERAL PART TOLERANCE IS ±0.1 UNLESS OTHERWISE STATED REV.:00 |
|
|
