SPEC OF WAVE-GUIDE ISOLATOR |
产品介绍: |

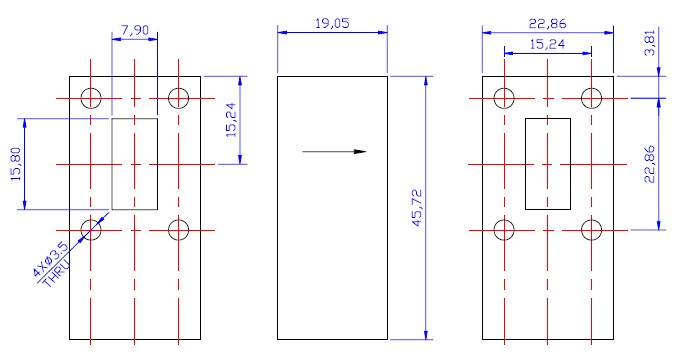

Part Number: WI-15000-004A Features: Low Insertion Loss Broadband Transmission Specification: Frequency 14-16 GHz Temperature range -30℃~+70℃ Return loss ≧18.0 dB Isolation ≧18.0 dB Insertion loss ≦0.25dB Power Handling(F/R) 2W/1W CW IMD3 45dBc @ 2X30dBm Outline Drawing (Unit : mm) GENERAL PART TOLERANCE IS ±0.1UNLESS OTHERWISE STATED REV.:00 |
|
|
