WAVE-GUIDE ISOLATOR

Part Number:
WI-15000-002A
Features:
Economically priced
Miniaturization
Broadband Transmission
Specification:
Frequency   14.35-15.40 GHz
Temperature range    -45℃～+75℃
Return loss    ≧20.0 dB
Isolation     ≧20.0 dB
Insertion loss     ≦0.4dB
Power Handling(F/R)   5W /CW

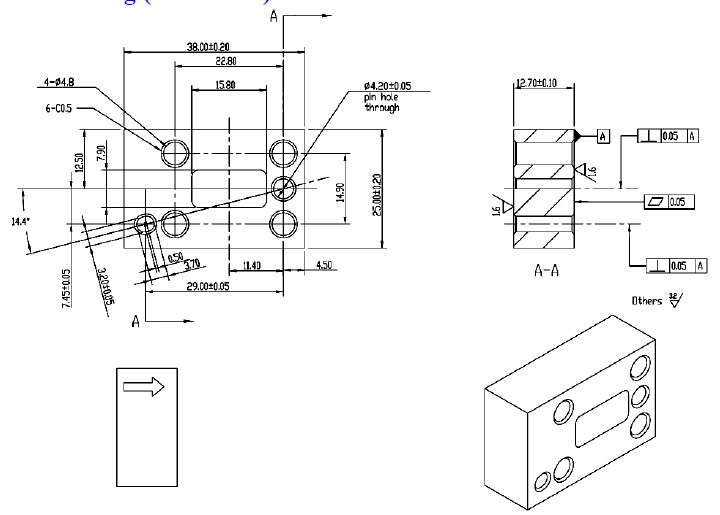

Outline Drawing (Unit : mm)

Other requirements for all above products:
1) Cavity materials: Aluminum alloy conductive oxide (RoHs Comply)
2) Product surface: No damage, scratches, stains
3) Isolator packing: Preventing Moisture, shock, and pollution
4) Environment test
Working temperature: -40°C~80°C @ humidity 95% R.H.
Temperature cycle test: -55°C~85°C, 10cycles, based on MIL-STD-883, method 1010（Test condition A），
every cycle 1hour
Humidity（Stable condition）：40°C@ Humidity 95% R.H.，96 hours，based onMIL-STD-202，method 103B
Vibration：10-55Hz，X,Y,Z each coaxial 2 hours，based on MIL-STD-202, method201A
REV.:00
